Composite Deck

SDI & UL Certified • Grade 50 Standard • Custom Cut-to-Fit

Composite metal deck acts as a permanent form for concrete. Once the concrete cures, the deck and concrete work together as a composite unit to resist loads — eliminating or reducing the need for shoring during construction.

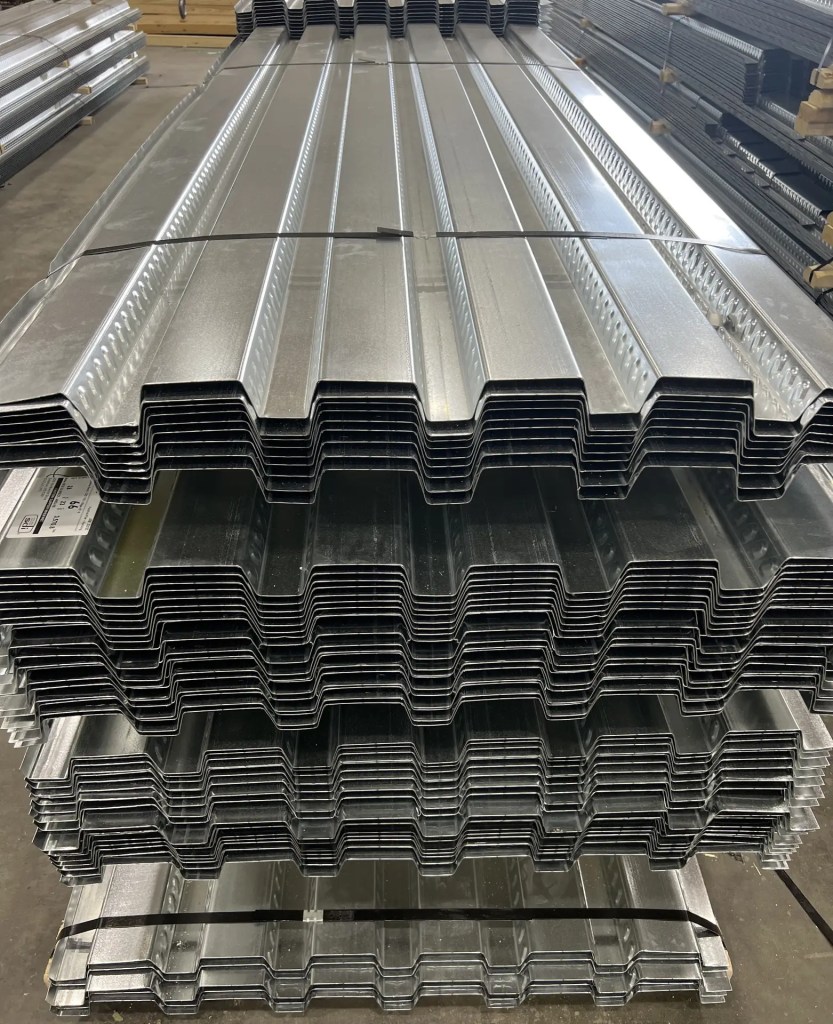

Composite steel floor deck profile — 2 inch and 3 inch options from Cutting Edge Decking Houston TX

Available Profiles

1.5" Composite Deck

Gauge: 16 ga – 22 ga Finish: Galvanized G90 Grade: Grade 50 standard

Lightweight solution for commercial and industrial buildings. Ribbed profile bonds with concrete to create efficient composite floor systems for moderate spans.

2" Composite Deck

Gauge: 16 ga – 22 ga Finish: Galvanized G90 Grade: Grade 50 standard

The most popular profile for projects requiring higher load capacities and longer spans. Widely used in high-rise buildings, hospitals, and parking structures.

3" Composite Deck

Gauge: 16 ga – 22 ga Finish: Galvanized G90 Grade: Grade 50 standard

Maximum load-bearing capacity and long-span capability. Designed for heavy-duty industrial environments and large-scale commercial construction.

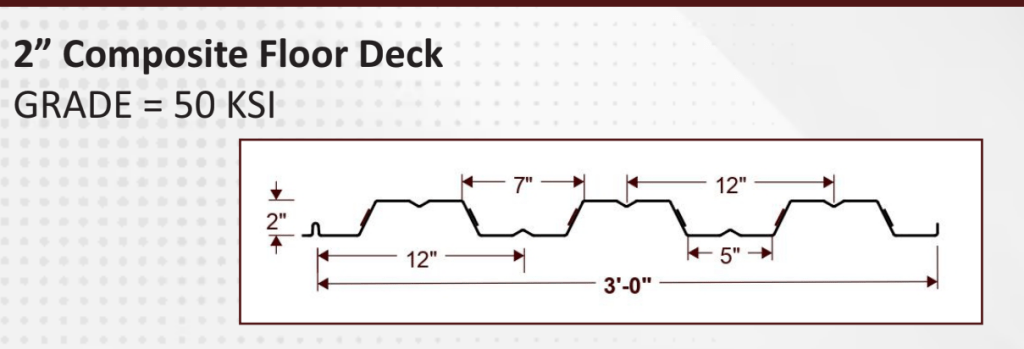

Profile Cross-Section

2 inch composite metal deck cross-section profile diagram showing rib dimensions

Technical Specifications

Available Depths 1.5", 2", and 3" profiles
Cover Width 36 inches
Available Gauges 16, 18, 20, 22 gauge
Standard Finish Galvanized G90
Standard Grade Grade 50 standard across all profiles
Min. End Bearing 1.5 inches
Fastening Options Button punch (interlocking lap) / TEK screws
Min. Cut Length 1 foot — at no extra charge
Certification SDI Certified · UL Classified (US & Canada)

Why Cutting Edge Decking

No Shoring Required

Composite action eliminates temporary shoring in most applications, saving time and cost.

High Load Capacity

Steel and concrete working together achieve spans and loads impossible with either material alone.

Cut-to-Fit Service

Lengths as short as 1 foot cut to specification at no extra charge.

Grade 50 Standard

Grade 50 supplied as standard across all profiles and gauges.

Flexible Fastening

Button-punch interlocking lap or TEK screw fastening — your choice.

SDI & UL Certified

Fully certified for code compliance on any commercial project.

Common Applications

  • Multi-Story Office Buildings
  • Hospitals & Medical Facilities
  • Parking Structures
  • High-Rise Residential
  • Industrial Facilities
  • Mixed-Use Developments
