Non-Composite Deck
SDI & UL Certified • Grade 50 Standard • Custom Cut-to-Fit
Non-composite metal deck serves as a permanent steel form for concrete slabs without bonding to the concrete. It provides a cost-effective and structurally reliable solution when composite action is not required by the structural design.
Available Profiles
1.5" Non-Composite Deck
Lightweight and robust formwork for standard floor slabs and mezzanine systems. Provides adequate structural support with minimal material weight.
2" Non-Composite Deck
Higher load capacities and greater spans compared to the 1.5" profile. Increased stability for medium-to-large-scale industrial floor applications.
3" Non-Composite Deck
Maximum span and load-bearing capacity. Ideal for heavy-duty projects including industrial floors, parking garages, and building renovations.

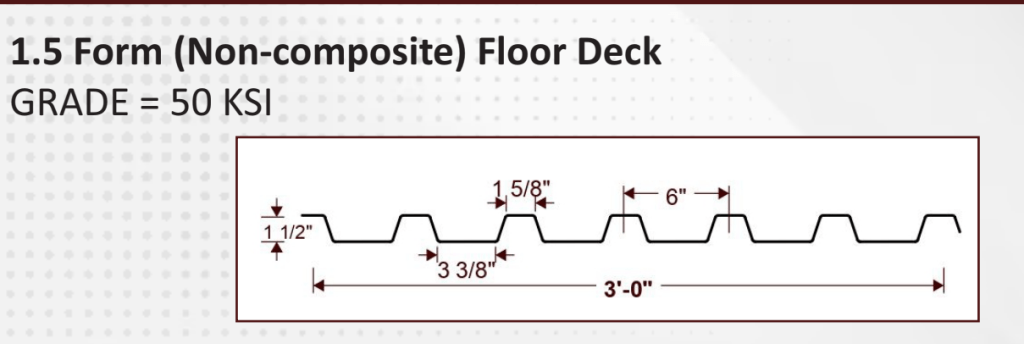

Profile Cross-Section
Technical Specifications
| Available Depths | 1.5", 2", and 3" profiles |
|---|---|
| Cover Width | 36 inches |
| Available Gauges | 16, 18, 20, 22 gauge |
| Standard Finish | Galvanized G60 or G90 |
| Standard Grade | Grade 50 standard across all profiles |
| Min. End Bearing | 2 inches |
| Fastening Options | Button punch (interlocking lap) / TEK screws |
| Min. Cut Length | 1 foot — at no extra charge |
| Certification | SDI Certified · UL Classified (US & Canada) |
Why Cutting Edge Decking
Stays in place after concrete pours — no stripping required, saving significant labor time.
Custom lengths down to 1 foot, no extra cost. Eliminates job-site cutting waste.
Supplied as Grade 50 across all profiles, even when lower is specified.
Interlocking lap or TEK screw installation depending on project requirements.
High recycled steel content with eco-friendly galvanized coating options.
Manufactured to Steel Deck Institute standards for every application.
Common Applications
- Parking Garages
- Industrial Floor Slabs
- Mezzanine Systems
- Building Renovations
- Warehouses
- Mixed-Use Platforms
Ready to Spec Your Next Project?
We cut to fit and deliver on time, every time. Get in touch for a free consultation and quote.
Get a Free Quote
